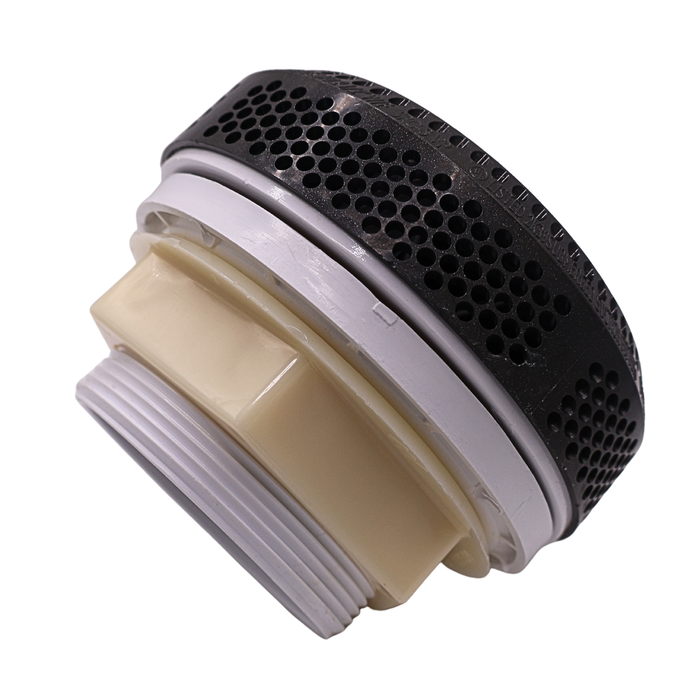

X804664 - 2.5 inch Super Hi-Flow DSG VGB Suction Wallfitting Assembly (2009 or Later)
X804664 - 2.5 inch Super Hi-Flow DSG VGB Suction Wallfitting Assembly (2009 or Later)
Couldn't load pickup availability
X804664 - 2.5 inch Super Hi-Flow DSG VGB Suction Wallfitting Assembly (2009 or Later)
🔒 Order with Confidence
🔒 Order with Confidence
✅30-Day Money Back Guarantee — no risk trying it.
🚚Free shipping available. Orders processed within 24–48 hours.
🔐Secure & encrypted checkout with trusted payment providers.
X804664 - 2.5 inch Super Hi-Flow DSG VGB Suction Wallfitting Assembly (2009 or Later)

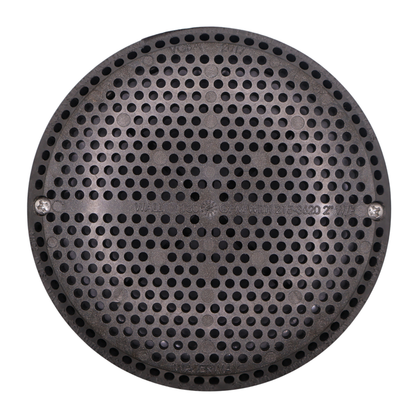

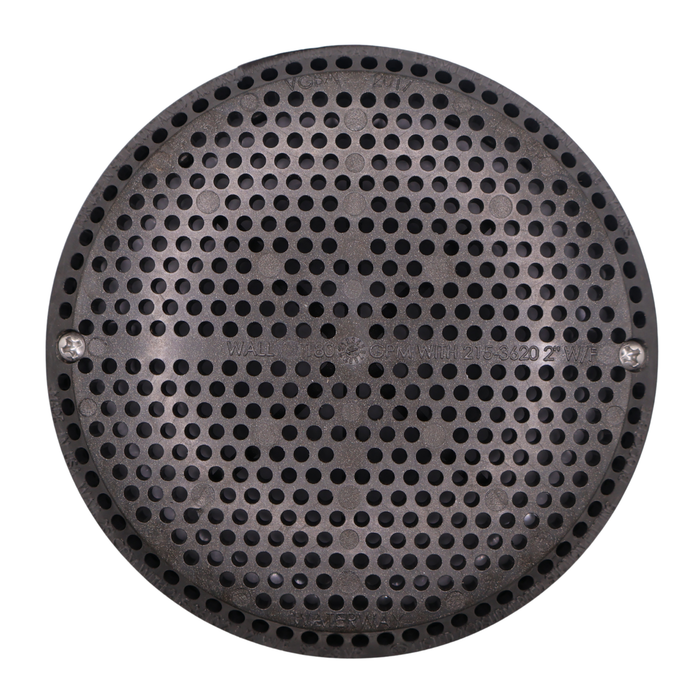

Cap Dimensions:
Outside Diameter: 5.1875 inches (13.17625 cm)
Inside Diameter: 4.90625 inches (12.461875 cm)
Height: 1.25 inches (3.175 cm)
Weight: 4.0 oz. (115 g)
Beveled: Beveled on sides
Attached by 2 (side) screws (included)

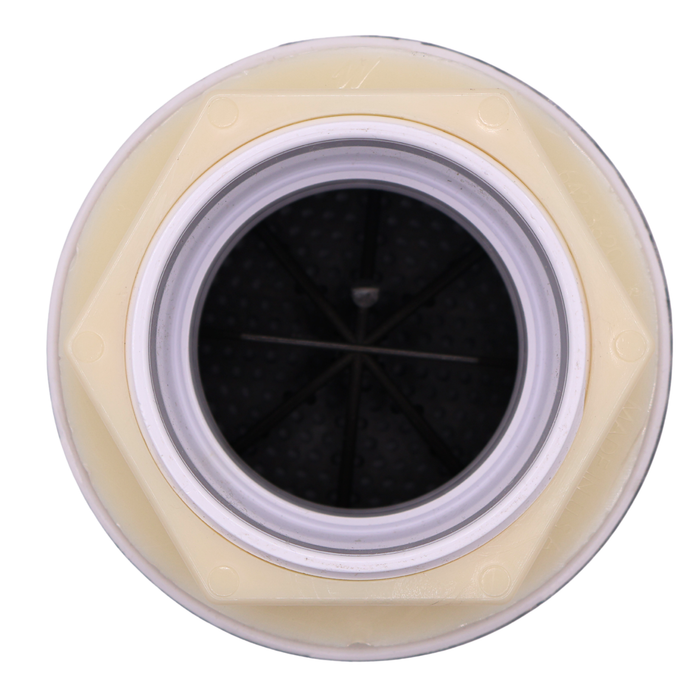

Unit Dimensions:
Face Diameter: 5.1875 inches (13.17625 cm)
Height: 3.25 inches (8.255 cm)
Plumbing Inside Diameter: 2.6875 inches (6.82625 cm)
Plumbing Outside Diameter: 3.125 inches (7.9375 cm)
Weight: 12.2 oz. (340 g)
Cover Diameter: 5-3/16 inches
Suction Fitting Part Type: Cover
Color: Black
Wall Flow Rate: Wall only: 180 gpm submerged, 232 gpm submerged with vacuum break
Manufacturer: Waterway

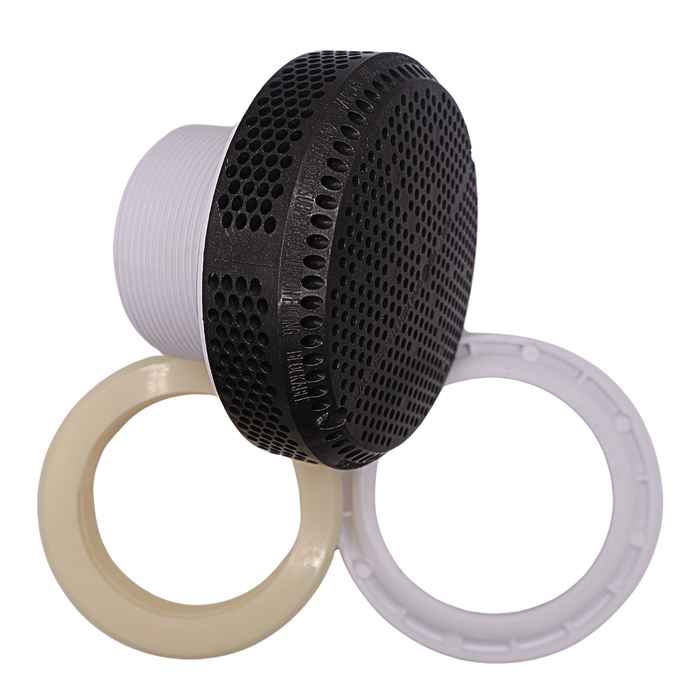

Included:
1 (one) DSG Suction Cover (Outside Screw Style)
[2 screws are located on the outside bevel]
1 (one) DSG Suction Body
1 (one) Gasket
1 (one) Compensation Ring
1 (one) Nut
